Smart IoT Integrations With Akenza and Python

The Akenza IoT platform, on its own, excels in collecting and managing data from a myriad of IoT devices. However, it is integrations with other systems, such as enterprise resource planning (ERP), customer relationship management (CRM) platforms, workflow management or environmental monitoring tools that enable a complete view of the entire organizational landscape.

Complementing Akenza's capabilities, and enabling smooth integrations, is the versatility of Python programming. Given how flexible Python is, the language is a natural choice when looking for a bridge between Akenza and the unique requirements of an organization looking to connect its intelligent infrastructure.

This article is about combining the two, Akenza and Python. At the end of it, you will have:

Since WebSocket connections are persistent, their usage enhances the responsiveness of IoT applications, which in turn helps to exchange occur in real-time, thus fostering a dynamic and agile integrated ecosystem.

Python and Akenza WebSocket Connections

First, let's have a look at the full Python code, which to be discussed later.

Python

 # -*- coding: utf-8 -*-

# Zato
from zato.server.service import WSXAdapter

# ###############################################################################################
# ###############################################################################################

if 0:
    from zato.server.generic.api.outconn.wsx.common import OnClosed, \
        OnConnected, OnMessageReceived

# ###############################################################################################
# ###############################################################################################

class DemoAkenza(WSXAdapter):

    # Our name
    name = 'demo.akenza'

    def on_connected(self, ctx:'OnConnected') -> 'None':
        self.logger.info('Akenza OnConnected -> %s', ctx)

# ###############################################################################################

    def on_message_received(self, ctx:'OnMessageReceived') -> 'None':

        # Confirm what we received
        self.logger.info('Akenza OnMessageReceived -> %s', ctx.data)

        # This is an indication that we are connected ..
        if ctx.data['type'] == 'connected':

            # .. for testing purposes, use a fixed asset ID ..
            asset_id:'str' = 'abc123'

            # .. build our subscription message ..
            data = {'type': 'subscribe', 'subscriptions': [{'assetId': asset_id, 'topic': '*'}]}

            ctx.conn.send(data)

        else:
            # .. if we are here, it means that we received a message other than type "connected".
            self.logger.info('Akenza message (other than "connected") -> %s', ctx.data)

# ##############################################################################################

    def on_closed(self, ctx:'OnClosed') -> 'None':
        self.logger.info('Akenza OnClosed -> %s', ctx)

# ##############################################################################################
# ##############################################################################################

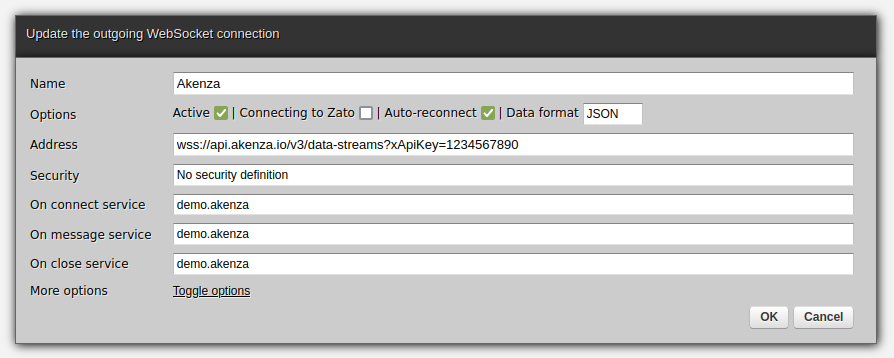

Now, deploy the code to Zato and create a new outgoing WebSocket connection. Replace the API key with your own and make sure to set the data format to JSON.

Smart IoT Integrations With Akenza and Python

Receiving Messages From WebSockets

The WebSocket Python services that you author have three methods of interest, each reacting to specific events:

Let's focus on on_message_received, which is where the majority of action takes place. It receives a single parameter of type OnMessageReceived, which describes the context of the received message. That is, it is in the "ctx" that you will both the current request as well as a handle to the WebSocket connection through which you can reply to the message.

The two important attributes of the context object are:

Now, the logic from lines 30-40 is clear:

A sample message from Akenza will look like this.


INFO - WebSocketClient -  Akenza message (other than "connected") -> {'type': 'subscribed',
'replyTo': None, 'timeStamp': '2023-11-20T13:32:50.028Z',
'subscriptions': [{'assetId': 'abc123', 'topic': '*', 'tagId': None, 'valid': True}],
'message': None}


How To Send Messages to WebSockets

An aspect not to be overlooked is communication in the other direction, that is, sending messages to WebSockets. For instance, you may have services invoked through REST APIs or perhaps from a scheduler, and their job will be to transform such calls into configuration commands for IoT devices.

Here is the core part of such a service, reusing the same Akenza WebSocket connection:

Python

 # -*- coding: utf-8 -*-

# Zato
from zato.server.service import Service

# ##############################################################################################
# ##############################################################################################

class DemoAkenzaSend(Service):

    # Our name
    name = 'demo.akenza.send'

    def handle(self) -> 'None':

        # The connection to use
        conn_name = 'Akenza'

        # Get a connection ..
        with self.out.wsx[conn_name].conn.client() as client:

            # .. and send data through it.
            client.send('Hello')

# ##############################################################################################
# ##############################################################################################


Note that responses to the messages sent to Akenza will be received using your first service's on_message_received method. WebSockets-based messaging is inherently asynchronous, and the channels are independent.

Now, we have a complete picture of real-time IoT connectivity with Akenza and WebSockets. We are able to establish persistent, responsive connections to assets, and we can subscribe to and send messages to devices and that lets us build intelligent automation and integration architectures that make use of powerful, emerging technologies.
