How To Test AWS Serverless Applications

The topic of Serverless testing is a hot one at the moment. There are many different approaches and opinions on how best to do it. In this post, I'm going to share some advice on how we tackled this problem, what the benefits are of our approach, and how things could be improved.

The project in question is Stroll Insurance, a fully Serverless application running on AWS. In previous posts, we have covered some of the general lessons learned from this project, but in this post, we are going to focus on testing.

For context, the web application is built with React and TypeScript, which makes calls to an AppSync API that makes use of the Lambda and DynamoDB datasources. We use Step Functions to orchestrate the flow of events for complex processing like purchasing and renewing policies, and we use S3 and SQS to process document workloads.

The Testing 'Triangle'

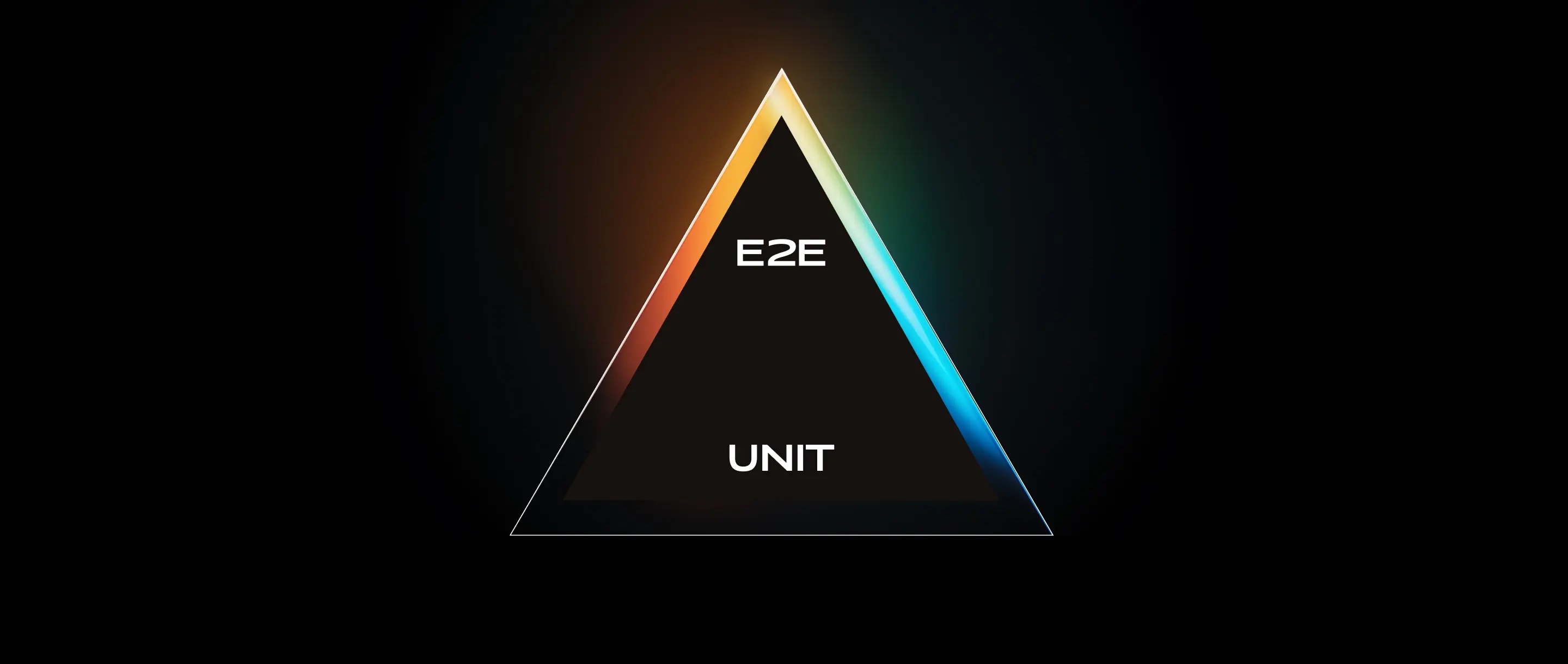

When the project started, it relied heavily on unit testing. This isn't necessarily a bad thing, but we needed a better balance between getting features delivered and maintaining quality. Our testing pyramid triangle looked like this:

How To Test AWS Serverless Applications

Essentially, we had an abundance of unit tests and very few E2E tests. This worked really well for the initial stages of the project, but as the product and AWS footprint grew in complexity, we could see that a number of critical parts of the application had no test coverage. Specifically, we had no tests for:

These underpin critical parts of the application. If they stop working, people will be unable to purchase insurance!

One problem that we kept experiencing was unit tests would continue to pass after a change to a lambda function, but subsequent deployments would fail. Typically, this was because the developer had forgotten to update the permissions in CDK. As a result, we created a rule that everyone had to deploy and test their changes locally first, in their own AWS sandbox, before merging. This worked, but it was an additional step that could easily be forgotten, especially when under pressure or time constraints.

Balancing the Triangle

So, we agreed that it was time to address the elephant in the room. Where are the integration tests?

Our motivation was simple:

There is a lack of confidence when we deploy to production, meaning we perform a lot of manual checks before we deploy and sometimes these don't catch everything.

This increases our lead time and reduces our deployment frequency. We would like to invert this.

The benefits for our client were clear:

Integration testing can mean a lot of different things to different teams, so our definition was this:

An integration test in this project is defined as one that validates integrations with AWS services (e.g. DynamoDB, S3, SQS, etc) but not third parties. These should be mocked out instead.

Breaking Down the Problem

We decided to start small by first figuring out how to test a few critical paths that had caused us issues in the past. We made a list of how we “trigger” a workload:

The pattern that emerged was that we have an event that flows through a messaging queue, primarily SQS and SNS. There are a number of comments we can make about this:

Setting the Test Context

One of the most critical parts of the application is how we process insurance policy documents. This has enough complexity to be able to develop a good pattern for writing our tests so that other engineers could build upon it in the future. This was the first integration test we were going to write.

How To Test AWS Serverless Applications

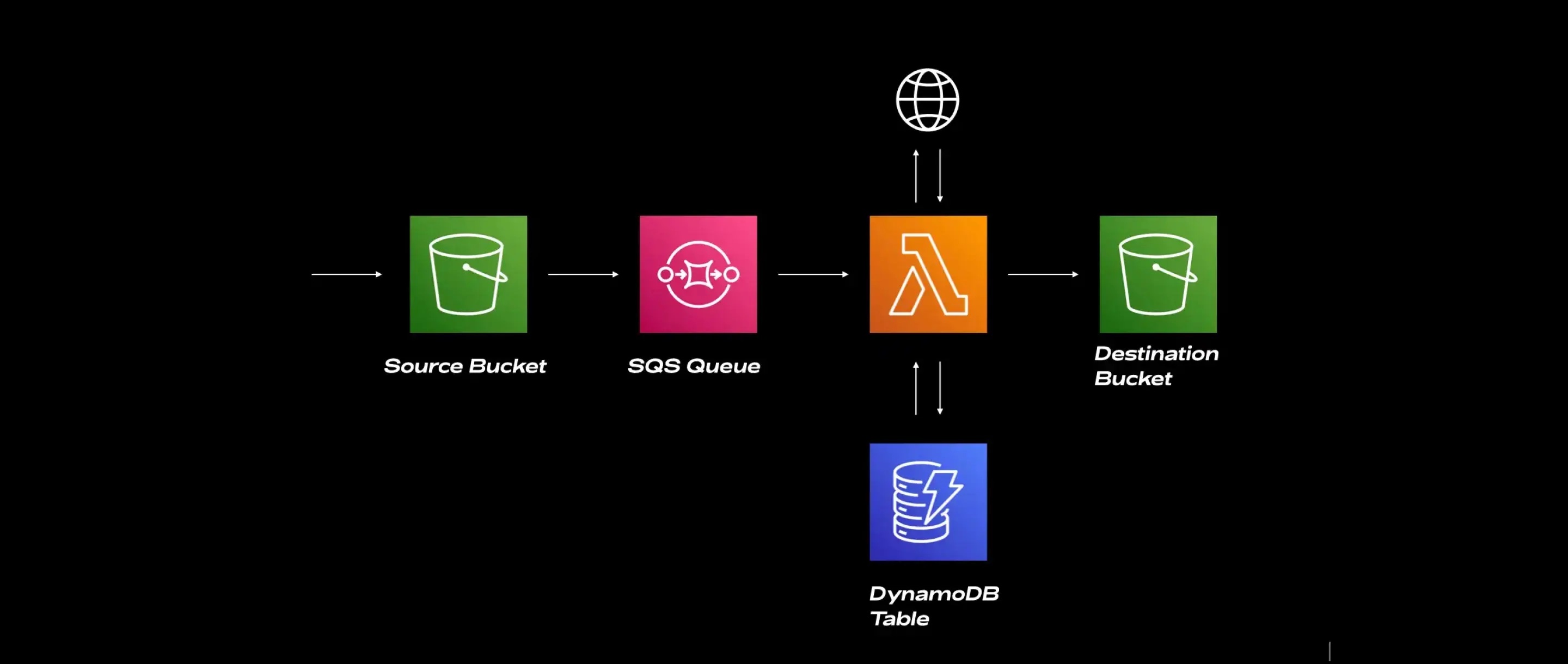

The flow is like this:

We wanted to assert that:

  1. The file no longer exists in the source bucket
  2. The DynamoDB table was updated with the correct data
  3. The file exists in the destination bucket

This would be an incredibly valuable test. Not only does it verify that the workload is behaving correctly, but it also verifies that the deployed infrastructure is working properly and that it has the correct permissions.

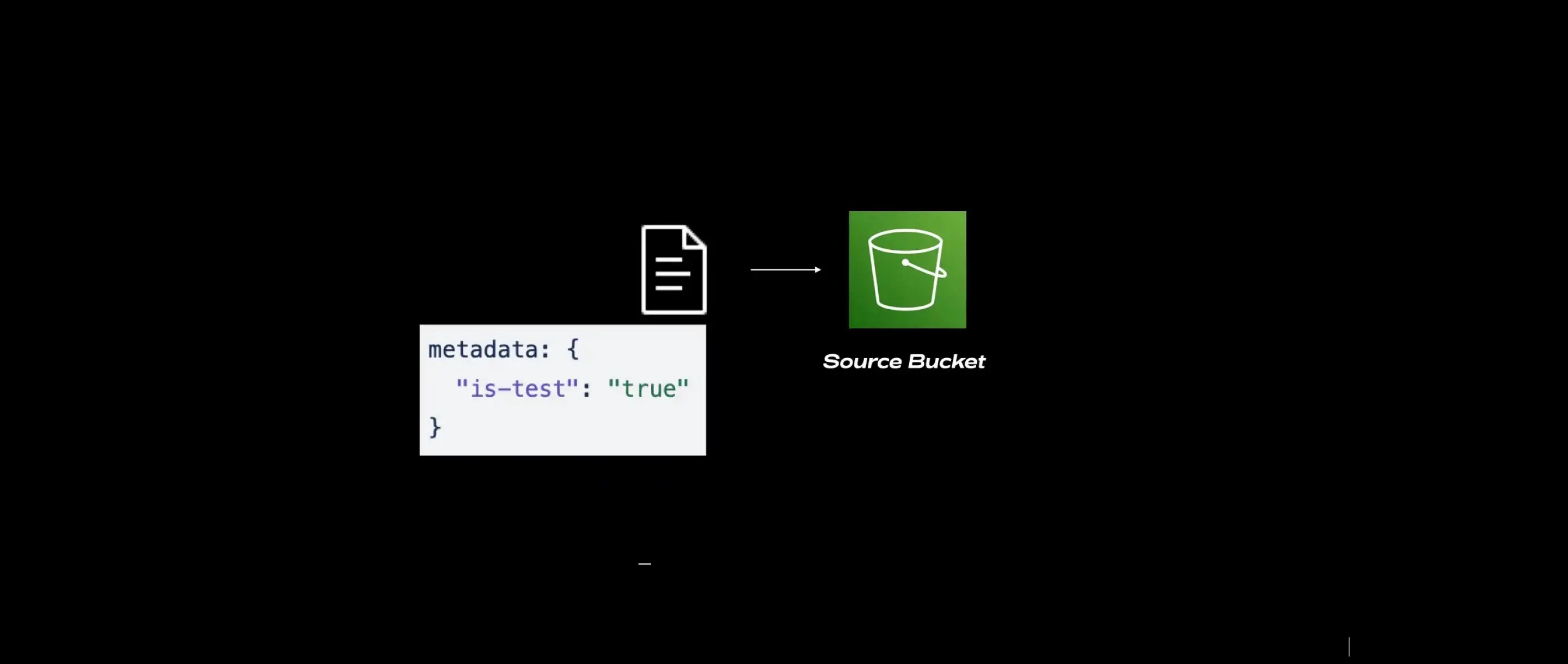

For this to work, we needed to make the Lambda Function aware that it was running as part of a test so that it would use a mocked response instead. The solution that we came up with was to attach some additional metadata to the object when it was uploaded at the start of the test case — an is-test flag:

How To Test AWS Serverless Applications

If the S3 object is moved to another bucket as part of its processing, then we also copy its metadata. The metadata is never lost, even in more complex or much larger end-to-end workflows.

The Middy Touch

Adding the is-test flag to our object metadata gave us our way of passing some kind of test context into our workload. The next step was to make the Lambda Function capable of discovering the context and then using that to control how it behaves under test. For this, we used Middy.

If you're not familiar, Middy is a middleware framework specifically designed for Lambda functions. Essentially, it allows you to wrap your handler code up so that you can do some before and after processing. I'm not going to do a Middy deep dive here, but the documentation is great if you haven't used it before.

We were already using Middy for various different things, so it was a great place to do some checks before we executed our handler. The logic is simple:

TypeScript

export const S3SqsEventIntegrationTestHandler = (logger: Logger): middy.MiddlewareObj => {

  // this happens before our handler is invoked.
  const before: middy.MiddlewareFn = async (request: middy.Request<SQSEvent>): Promise<void> => {
    const objectMetadata = await getObjectMetadata(request.event);
    const isIntegrationTest = objectMetadata.some(metadata => metadata["is-test"] === "true");

    setTestContext({isIntegrationTest});
  };

  // this happens after the handler is invoked.
  const after: middy.MiddlewareFn = (): void => {
    setTestContext({isIntegrationTest: false});
  };

  return {
    before,
    after,
    onError
  };
};

Here's the test context code. It follows a simple TypeScript pattern to make the context read-only:

TypeScript

export interface TestContext {
  isIntegrationTest: boolean
}

const _testContext: TestContext = {
  isIntegrationTest: false
};

export const testContext: Readonly<TestContext> = _testContext;

export const setTestContext = (updatedContext: TestContext): void => {
  _testContext.isIntegrationTest = updatedContext.isIntegrationTest;
};

I think this is the hardest part about solving the Serverless testing “problem.” I believe the correct way to do this is in a real AWS environment, not a local simulator, and just making that deployed code aware that it is running as part of a test is the trickiest part. Once you have some kind of pattern for that, the rest is straightforward enough.

We then built upon this pattern for each of our various triggers, building up a set of middleware handlers for each trigger type.

How To Test AWS Serverless Applications

For our S3 middleware, we pass the is-test flag in an object's metadata, but for SQS and SNS, we pass the flag using message attributes.

A Note on Step Functions

By far the most annoying trigger to deal with was Lambda Functions invoked by a State Machine task.

There is no easy way of passing metadata around each of the states in a State Machine - a global state would be really helpful (but would probably be overused and abused by people). The only thing that is globally accessible by each state is the Context Object.

Our workaround was to use a specific naming convention when the State Machine is executed, with the execution name included in the Context Object and therefore available to every state in the State Machine.

How To Test AWS Serverless ApplicationsFor State Machines that are executed by a Lambda Function, we can use our testContext to prefix all State Machine executions with "IntegrationTest-". This is obviously a bit of a hack, but it does make it easy to spot integration test runs from the execution history of the State Machine.

We then make sure that the execution name is passed into each Lambda Task and that our middleware is able to read the execution name from the event. (Note that $$ provides access to the Context Object).

How To Test AWS Serverless Applications

Another difficult thing to test with Step Functions is error scenarios. These will often be configured with retry and backoff functionality, which can make tests too slow to execute. Thankfully, there is a way around this, which my colleague, Tom Bailey, has covered in a great post. I would recommend giving that a read.

Mocking Third-Party APIs

We're now at a point where a Lambda Function is being invoked as part of our workload under test. That function is also aware that it's running as part of a test. The next thing we want to do is determine how we can mock the calls to our third-party APIs.

There are a few options here:

Using DynamoDB gave us the flexibility we needed to control what happens for a given API call without having to deploy a bunch of additional infrastructure.

Asserting That Something Has Happened

Now, it's time to determine if our test has actually passed or failed. A typical test would be structured like this:

TypeScript

it("should successfully move documents to the correct place", async () => {
    const seededPolicyData = await seedPolicyData();

    await whenDocumentIsUploadedToBucket();

    await thenDocumentWasDeletedFromBucket();
    await thenDocumentWasMovedToTheCorrectLocation();
  });

With our assertions making use of the aws-testing-library:

TypeScript

async function thenDocumentWasMovedToTheCorrectLocation(): Promise<void> {
  await expect({
    region,
    bucket: bucketName,
  }).toHaveObject(expectedKey);
}


The aws-testing-library gives you a set of really useful assertions with built-in delays and retries. For example:

Checking an item exists in DynamoDB:

TypeScript

await expect({
  region: 'us-east-1',
  table: 'dynamo-db-table',
}).toHaveItem({
    partitionKey: 'itemId',
});

Checking an object exists in an S3 bucket:

TypeScript

await expect({
  region: 'us-east-1',
  bucket: 's3-bucket',
}).toHaveObject(
  'object-key'
);

Checking if a State Machine is in a given state:

TypeScript

await expect({
  region: 'us-east-1',
  stateMachineArn: 'stateMachineArn',
}).toBeAtState('ExpectedState');


It's important to note that because you're testing in a live, distributed system, you will have to allow for cold starts and other non-deterministic delays when running your tests. It certainly took us a while to get the right balance between retries and timeouts. While at times it has been flakey, the benefits of having these tests far outweigh the occasional test failure.

Running the Tests

There are two places where these tests get executed: developer machines and CI.

Each developer on our team has their own AWS account. They are regularly deploying a full version of the application and run these integration tests against it.

What I really like to do is get into a test-driven development flow where I will write the integration test first and make my code changes, which will be hot-swapped using CDK, and then run my integration test until it turns green. This would be pretty painful if I was waiting on a full stack to deploy each time, but Hot Swap works well at reducing the deployment time.

On CI, we run these tests against a development environment after a deployment has finished.

It Could Be Better

There are a number of things that we would like to improve upon in this approach.

  1. Temporary environments: We would love to run these tests against temporary environments when a Pull Request is opened.
  2. Test data cleanup: Sometimes, tests are flaky and don't clean up after themselves properly. We have toyed with the idea of setting a TTL on DynamoDB records when data is created as part of a test.
  3. Run against production: We don't run these against production yet, but that is the goal.
  4. Open source the middleware: I think more people could make use of the middleware than just us, but we haven't got around to open-sourcing it yet.
  5. AWS is trying to make it better: Serverless testing is a hot topic at the moment. AWS has responded with some great resources.

Summary

While there are still some rough edges to our approach, the integration tests really helped with the issues we have already outlined and can be nicely summarised with three of the four key DORA metrics:
